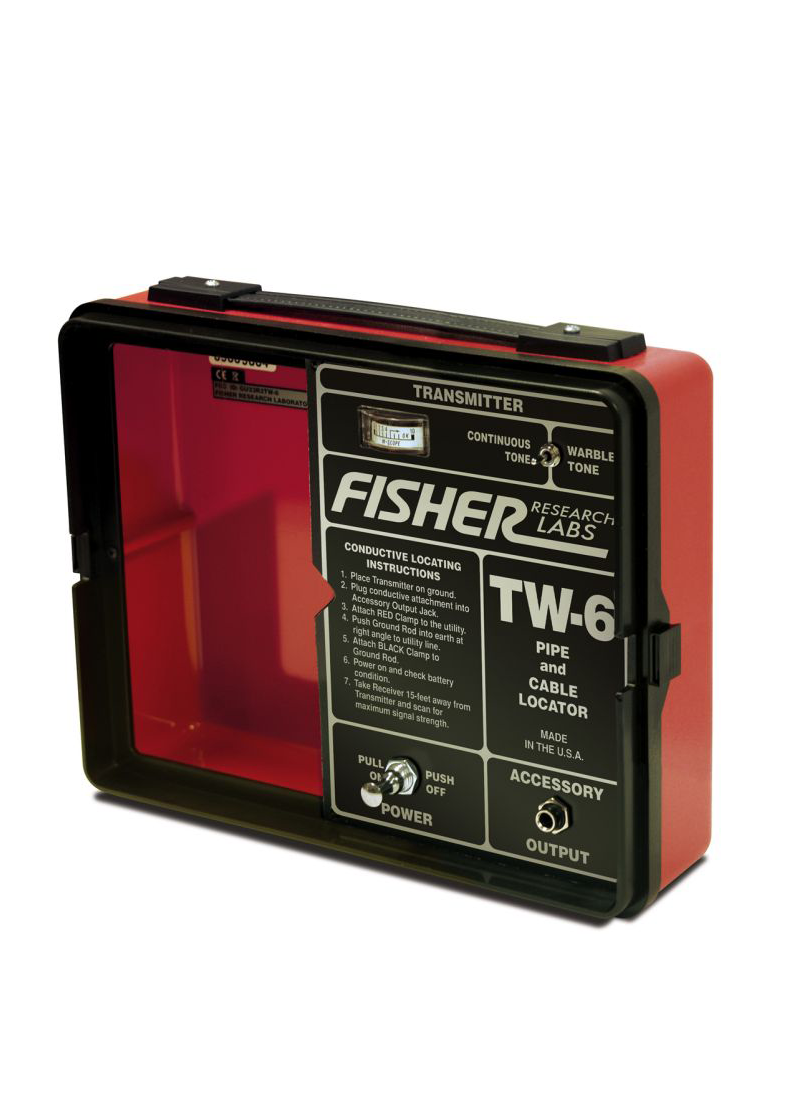

Fisher TW 6 Box Metal Detector

Fisher TW-6 is an industry leading 2-box metal locator. Locate deeply buried pipes, cables, manhole covers, vaults, valve boxes and other metallic objects.

$865

The Fisher TW-6 is an industry leading 2-box metal locator. Locate deeply buried pipes, cables, manhole covers, vaults, valve boxes and other metallic objects. This latest release of this model includes an easy to read LCD Display screen with backlight and digital readout. The battery status is always visible on the display.

Find Underground Metallic Objects with Ease

The Model TW-6 “Two-Box” metal detector finds underground pipes, cables, manhole covers, vaults, valve boxes and other metallic objects. The TW-6 is used primarily by water departments, telephone companies, power companies, gas companies and petroleum pipeline companies when making repairs and rearranging lines.

Easy Operation, Accurate Target Location

The TW-6 shows where to dig, as well as where NOT to dig. To increase the instrument’s sensitivity, Fisher engineers removed all unnecessary metallic parts on the TW-6, replacing them with durable ABS molded plastic. Coil windings are designed with completely upgraded electronics and nonmetallic parts have boosted the tracing distance of the TW-6.

Electric power companies and others use this equipment to locate cable and wire, pipes, buried lines and other utilities. This two box metal detector is one of the Fishers most popular products. To increase the instruments sensitivity, Fisher engineers removed all unnecessary metallic parts on the TW-6, replacing them with durable ABS molded plastic. The device has a stereo jack for use with external headphones.

Classic Fisher Design

In the Fisher tradition, the TW-6 is affordable, tough, and simple to use while providing maximum performance. A two year limited warranty comes standard with the unit. A Ground Rod Harness Assembly provides an efficient ground for conductive tracing. The Fisher TW-6 Pipe & Cable Locator has noise cancelling circuitry that eliminates power line interference. As industry leaders in pipe and cable locating equipment, Fisher has perfected the technology originally introduced in earlier models.

Detailed Specifications:

  • The Fisher TW-6 metal detector is the industry leading 2-box locator
  • The Fisher TW-6 is excellent for blind searches
  • Crystal controlled frequency in both transmitter and receiver increases tracing distance
  • Unlike other units that use a separate transmitter and receiver, the Fisher TW-6 when mounted on the handle, can conduct “blind” searches of an area to locate an underground pipe or cable when the starting point is unknown
  • VCO (Voltage Controlled Oscillator) gives a wider range of audio single to indicate the presence of metal. Even after the meter pegs, the audio signal goes much higher in pitch and volume
  • Noise canceling circuitry eliminates power line interference
  • The Fisher TW-6 is powered by 16 standard AA (penlight) batteries: eight in the transmitter and eight in the receiver
  • The Fisher TW-6 metal detector weighs only 5.5 pounds

TW-6 Receiver Specifications

  • Operating Frequency: 81.92 kHz + .005%
  • Batteries: 8 each AA (NEDA 15)
  • Weight: 3 lbs. (1.36 kg)
  • Sensitivity: Normal: 400 uV typical High: 8 uV typical
  • Signal-to-noise Ratio: 110 dB
  • Headset Impedance: 600 ohms (mono) 8 ohms (stereo)
  • Dimensions: 11 1/2″ x 9″ x 3″ (29 x 23 x 7.6 cm)
  • Operating Temperature: -10°F to +120°, (-23°C to +48°C) depending on batteries used
  • Total Weight: 5.5 lbs. (2.5 kg) – (without handle accessory, ground plate assembly & op manual)
  • Total Shipping Weight: 6.75 lbs. (3 kg) – (including only ground plate assembly and operating manual)

TW-6 Transmitter Specifications

  • Operating Frequency: 81.92 kHz + .005%
  • Batteries: 8 each AA (NEDA 15)
  • Weight: 2.5 lbs. (1.1 kg)
  • Dimensions: 11 1/2″ x 9″ x 3″ (29 x 23 x 7.6 cm)
  • Operating Temperature: -10°F to +120°, (-23°C to +48°C)

Standard Factory Items Included

  • 5 Year Warranty
  • Comprehensive User’s Manual
